Name: Lowrance HDS PRO 16 - w/ Preloaded C-MAP DISCOVER OnBoard Active Imaging HD Transducer
SKU: 139400

HDS PRO 16 - with Preloaded C-MAP DISCOVER OnBoard & Active Imaging HD Transducer

See more and catch more with the HDS PRO 16 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging™ HD Transducer. Quickly locate prime fishing areas with preloaded C-MAP® DISCOVER OnBoard charts and get full fishing system networking with expanded boat control from bow to stern.

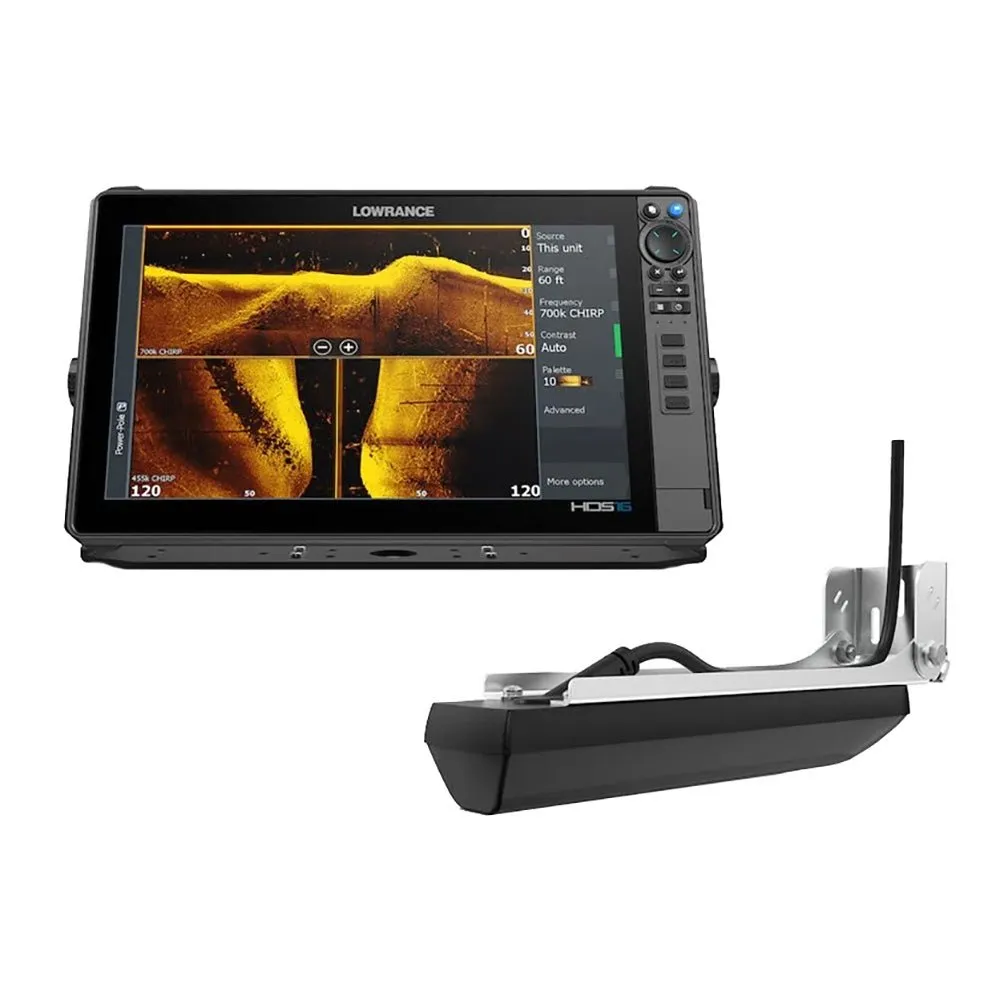

In the box:

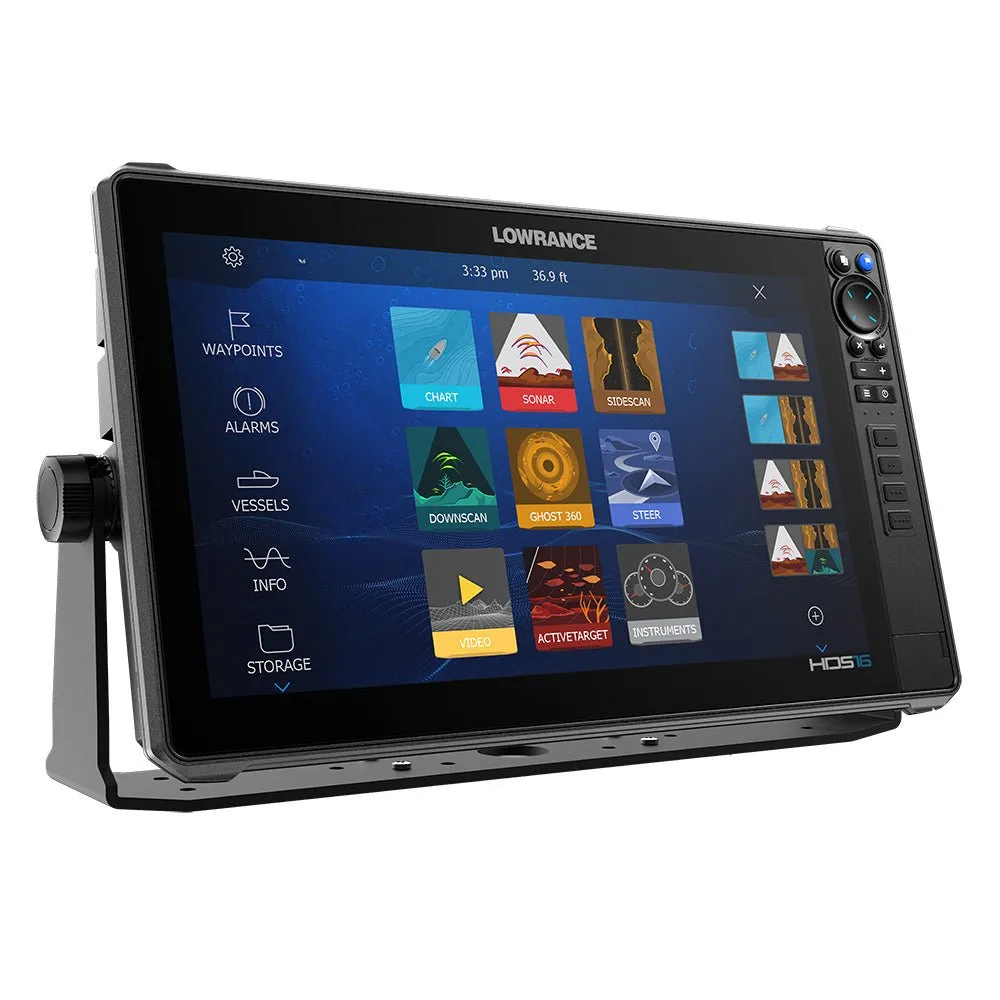

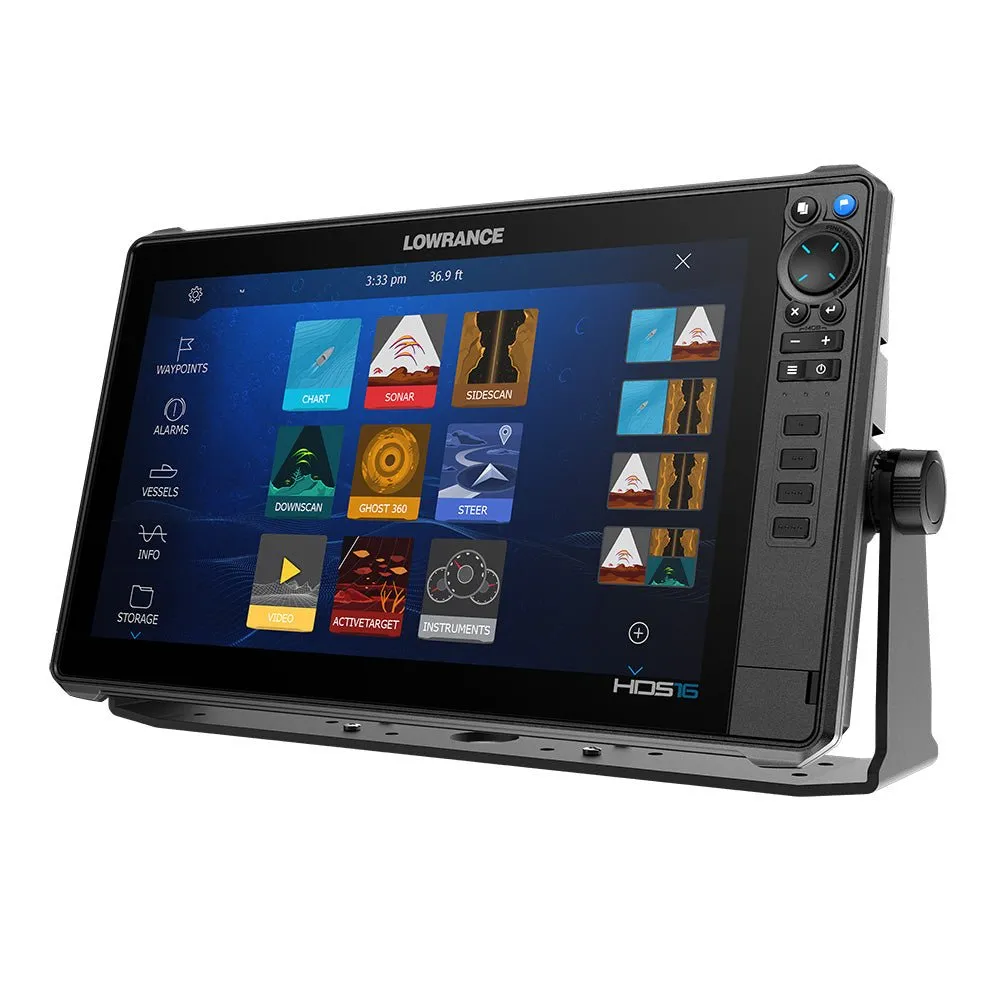

HDS PRO fishfinder/chartplotter (16-inch display screen)
C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)
Lowrance Active Imaging HD 3-in-1 Transducer (part number: 000-16062-001)

Features (Lowrance Active Imaging HD 3-in-1 Transducer):

High definition (up to 1.2MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure
Lowrance® CHIRP with superb clarity and target separation
FishReveal™ DownScan view makes fish identification easy
Supports Medium and High CHIRP (83/200kHz) 455/800kHz and 455/1.2MHz frequencies
Smart transducer design boosts signal clarity
Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon, and Elite FS

Features:

Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000 US Lakes, 9,400 Canadian Lakes
SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
High-definition Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
High-resolution ActiveTarget 2 Live Sonar ready
FishReveal™ with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer)
Real-time mapping is available with C-MAP Genesis Live.
Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views
Large programmable keys
Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot
NMEA 2000, wireless and bluetooth, connectivity – plus smartphone notifications

Display:

Backlight Color: Pure white LED
Display Resolution: 1920 x 1080 Full HD
Viewing Angles: 80° top/bottom, 80° left/right

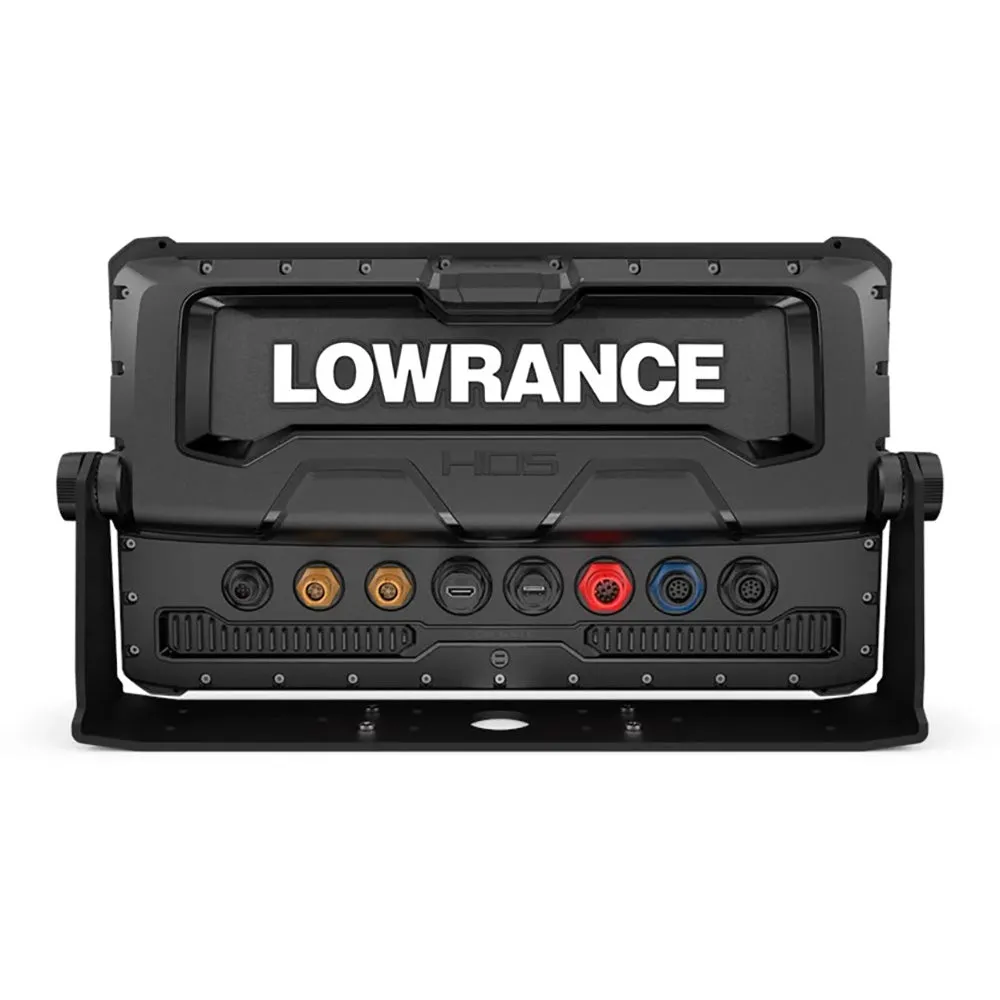

Connectivity:

Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network
Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module
NMEA 2000 Connectivity: 1x Micro-C
SD Card Storage: 2 micro SD cards up to 32GB

Electrical:

Power Consumption Max: 4.1A @ 13VDC with Full Backlight, Sonar on
Power Consumption Minimum: 3.00 @ 13VDC with Full Backlight, Sonar on
Power Consumption Typical: 3.00 @ 13VDC with Full Backlight, Sonar on
Recommended Fuse Rating: 5A
Supply Voltage: 12 v DC (10.8-17VDC)

Environment:

Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )

GPS:

GPS Receiver Channels: 16
Update rate: 10 Hz

MFD (Multi-Function Display):

Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)
Internal Storage: 8.0 GB Internal
Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail
