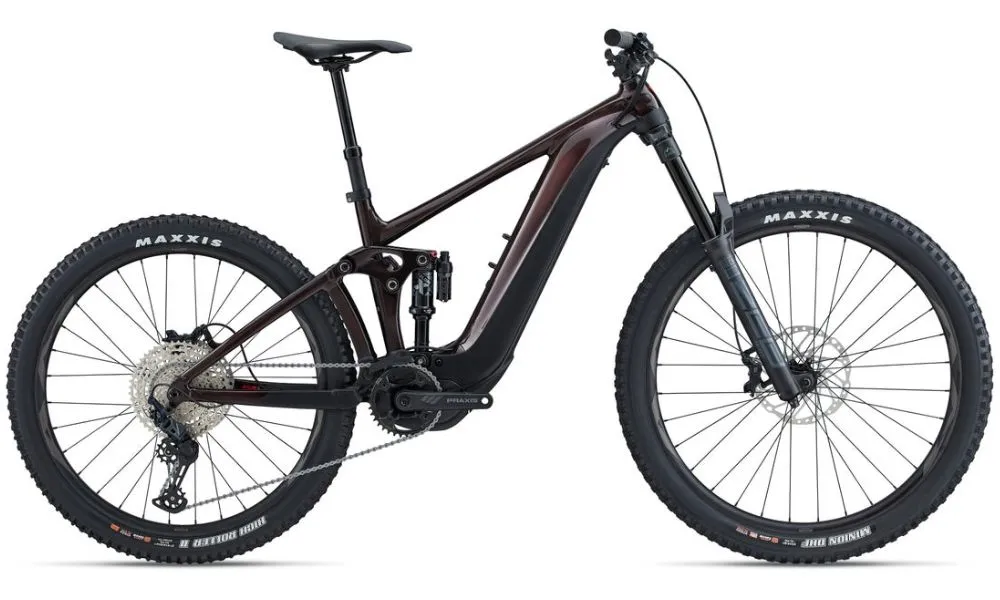

Giant 2023 Reign E 2
Every trail, every steep climb, every thrilling descent. Tested and developed by Giant’s E-bike enduro pros, this proven trail ripper gives you the power to enjoy the best parts of the ride again and again.
A 29-inch front wheel and 27.5-inch rear wheel work together to offer superior handling and agility on technical terrain. The updated frameset features new geometry with a shorter rear end and longer reach. Control units include RideControl Go, which is integrated into the top tube, and RideControl Ergo 3, attached to the handlebar near the grip. A flip chip feature lets you adjust frame geometry for riding style and terrain.
Trail technology
Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor technology boost your capabilities on steep climbs and rugged descents. Updated geometry with a shorter rear end and longer reach allow superior handling and agility on technical terrain.
Total control
RideControl Ergo 3 offers integrated, user friendly button controls that are easy to use. The Giant E-bike app gives you tuning options and E-bike specific fitness tracking.
Long-lasting power
Climb steep mountains and enjoy fun descents all day long with the new downtube-integrated EnergyPak featuring 800Wh of capacity.
Specifications
Giant 2023 Reign E 2
Frame
Colour: Cordovan/Black
Frame: ALUXX SL-grade Aluminium, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, flip chip, 12x148mm thru-axle
Fork: RockShox ZEB Select 29er, 170mm travel, Charger RC damper, 15x110 Boost, Maxle Stealth, E-bike Approved
Shock: Fox Float X Performance, EVOL Large Volume sleeve, 2-position lever, custom tuned
Drivetrain
Crankset: Praxis Wave™ 36T Cold Forged 4130 premium steel Praxis e-Cadet custom forged crankarm set
Pedals:
Chain: KMC e.12 Turbo, EcoProteq, e-bike optimised
Bottom Bracket: NA
Rear Derailleur: Shimano Deore SLX, 12-speed, Shadow
Front Derailleur: MRP HD2 co-moulded chain guide
Derailleur Shifter: Shimano Deore SLX
Freewheel/Cassette: Shimano Deore HG-M6100, 10-51T, 12-speed
Drive Unit: SyncDrive Pro, 85Nm, powered by Yamaha
Wheels
Tyres: [F] Maxxis Minion DHF 29x2.6"foldable, Tubeless, EXO , 3C MaxxTerra [R] Maxxis High Roller II 27.5x2.5"foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound
Wheels/Rims: Giant AM 29"[F] 27.5"[R], Tubeless ready
Hubs: Shimano MT410 Boost, Center-Lock
Braking System
Brakes: Shimano SLX BR-M7120, 4-piston, hydraulic disc, [F] 203mm, [R] 203mm
Brake Levers: Shimano SLX, I-spec EV
Other
Handlebar: Giant Contact Trail, 35mm
Stem: Giant Contact SL 35
Saddle: Giant Romero Trail
Seat Post: Giant Contact Switch dropper, remote
Battery: EnergyPak Smart 800Wh EnergyPak Plus range extender compatible
Charger: EnergyPak 6A smart charger
Control: RideControl Ergo 3, grip integrated
Display: RideControl GO, frame integrated LED displayANT Wireless display compatible
